Rancher 350 oil pump failure

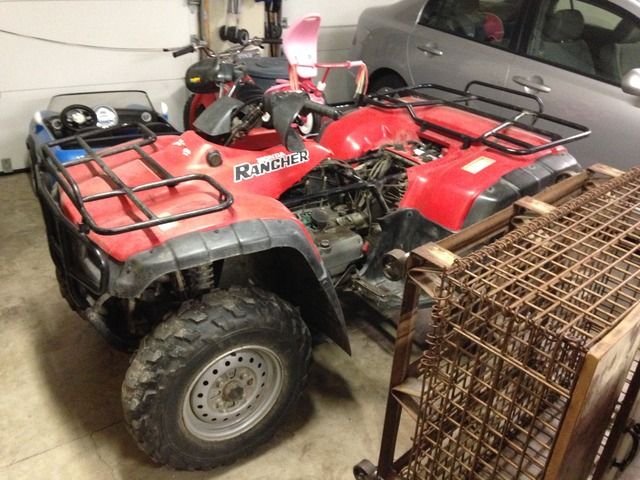

I picked up this 01 Rancher last month knowing the top end was cooked from not getting oil but not knowing why. The guy I bought it from said it shut off while he was riding it. He had a guy look at it but decided he would rather parts ways and get something newer than fix it. I love these kind of projects.
Click the image to open in full size.

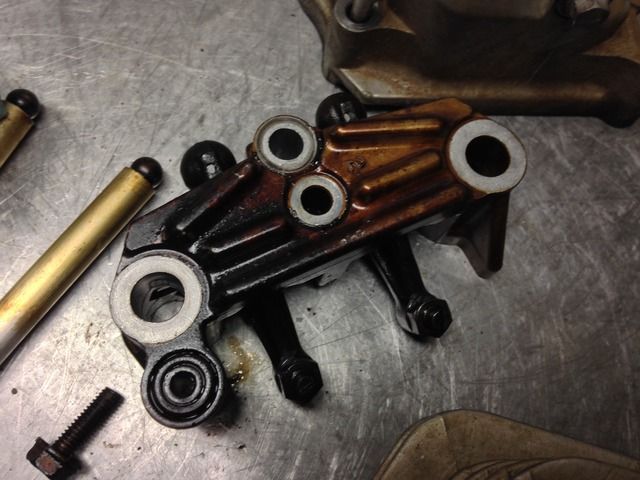

I started tearing into the top end. First thing I noticed was the rockers and their holder were toast.
Click the image to open in full size.

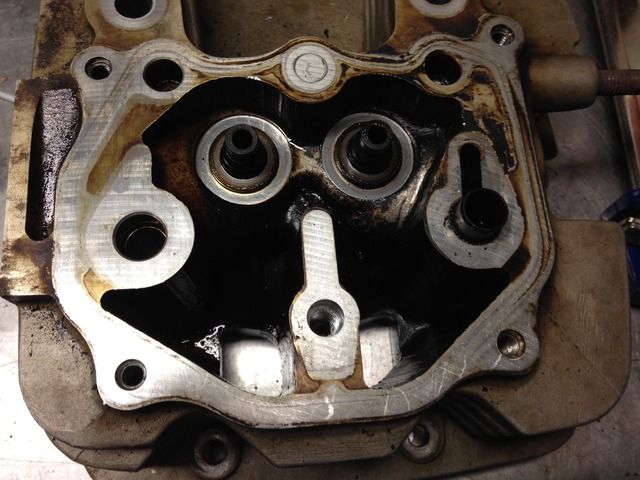

I put in new valve stem seals since the others were hard from being cooked.
Click the image to open in full size.

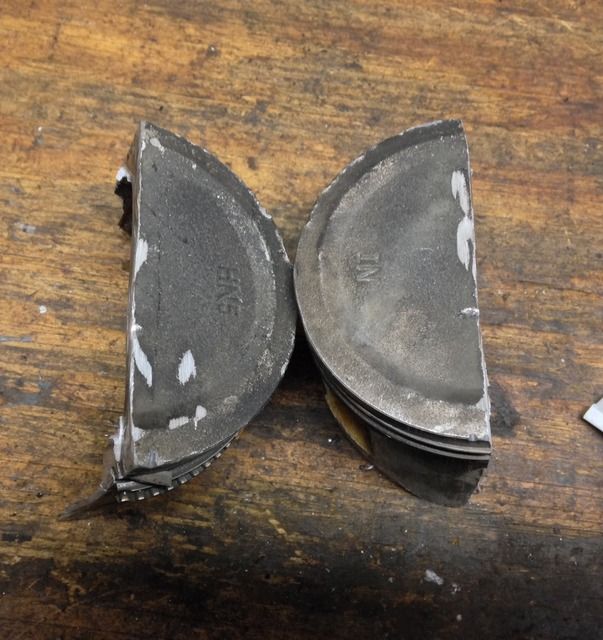

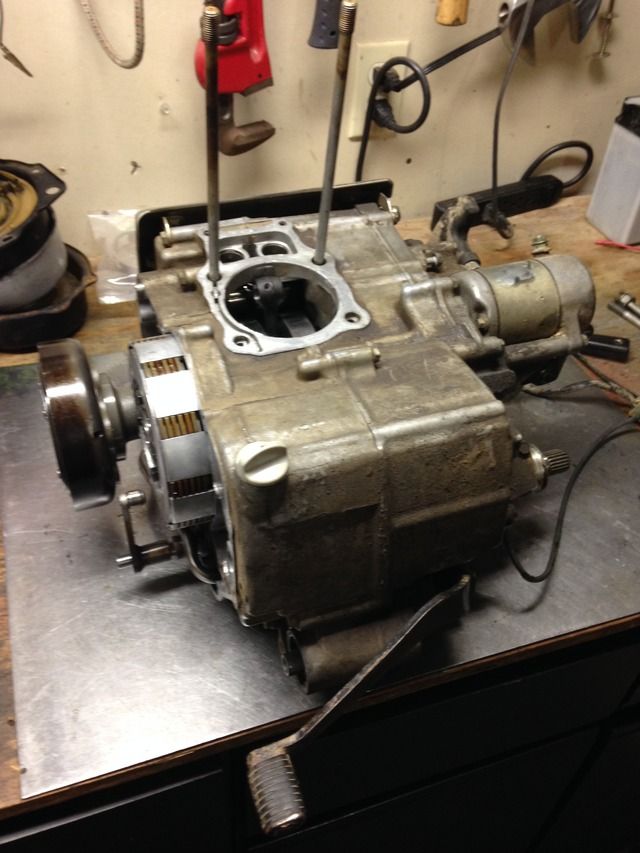

I ended up having to cut the piston off because the wrist pin was seized in the rod small end from the heat. Luckily the cam is in the case on this motor or it would have probably been junk also.
Click the image to open in full size.

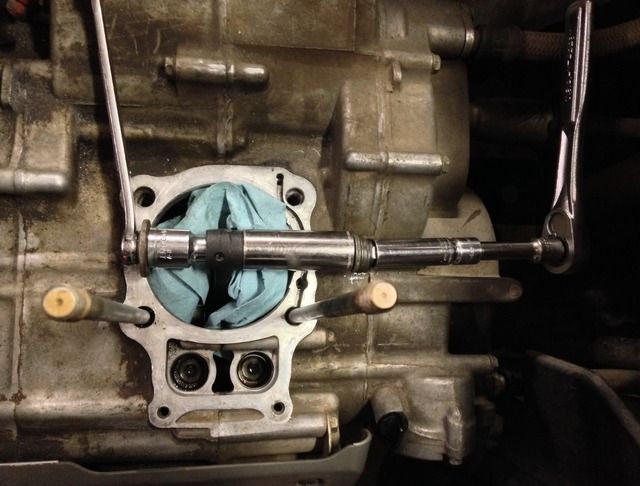

Also had to press the pin out
Click the image to open in full size.

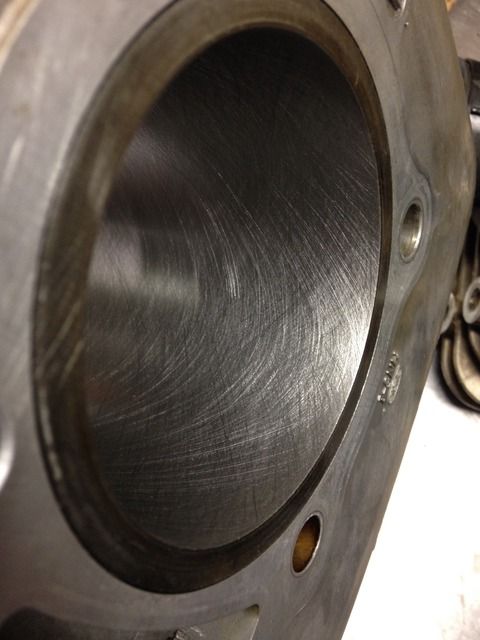

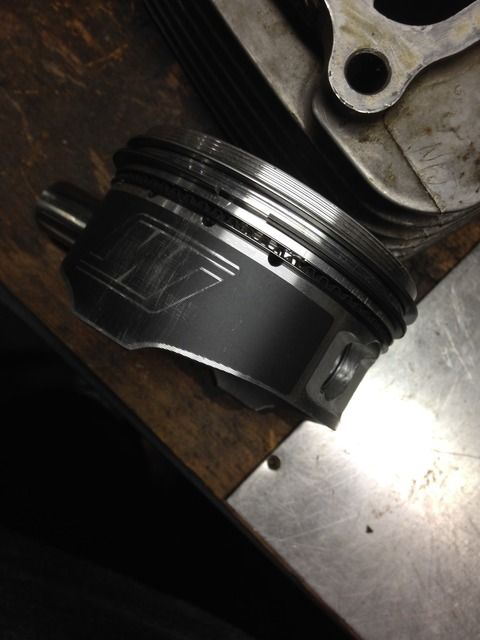

I bought a Wiseco .50mm oversize piston kit and had the cylinder bored to match.
Click the image to open in full size.
Click the image to open in full size.

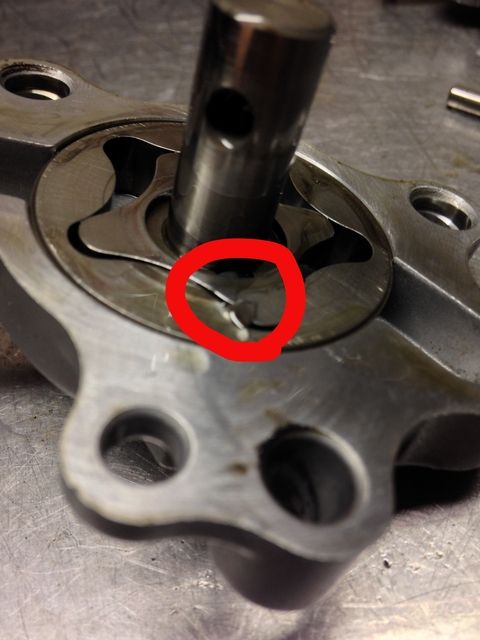

Now that I had the top end squared away, I needed to know what caused all this carnage in the first place. I pulled off the oil pump and noticed the shaft on it would not spin. Upon closer inspection I noticed a little metal shard wedged in it. You can just barely see it sticking up in this pic
Click the image to open in full size.

I thought oh no big deal, a new oil pump is $80. I will replace it slap the top end back on and call it a day. Wrong. When the oil pump locked up it broke the tabs off the balancer. That ruined my day realizing that the case has to be split to change the balancer. Not hard, just a pain in the nuts and takes a long time.
Click the image to open in full size.

So out comes the motor and onto the work bench to split the case.
Click the image to open in full size.

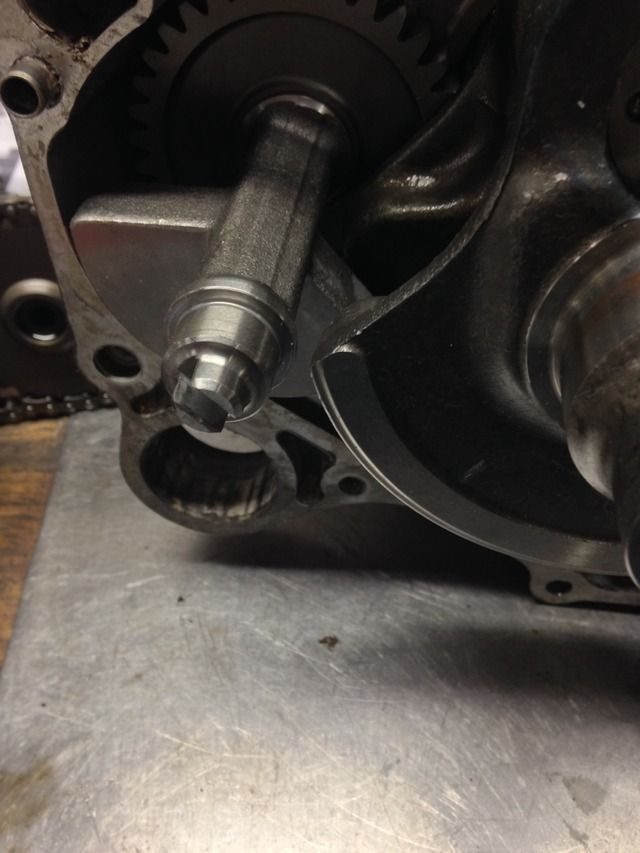

Used balancer ($9 w/ free shipping on eBay) back in after having to press out the crank and press it back in.
Click the image to open in full size.

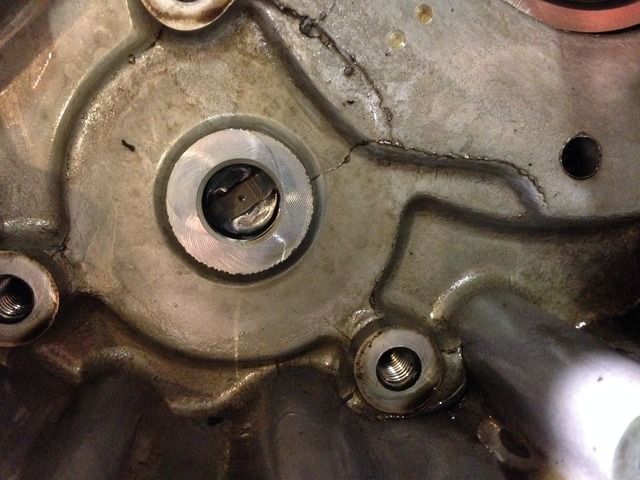

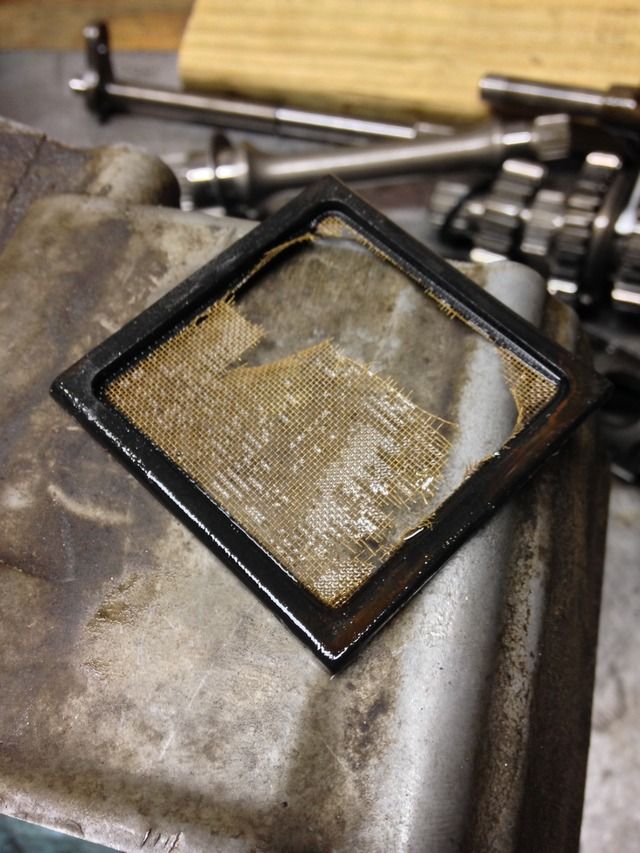

I’m wondering if this is the culprit for that metal shard getting all the way to the oil pump. I don’t get why Honda made it so you have to SPLIT THE CASE to clean/check the oil screens on this motor. Normally you just have to pull the clutch cover.
Click the image to open in full size.

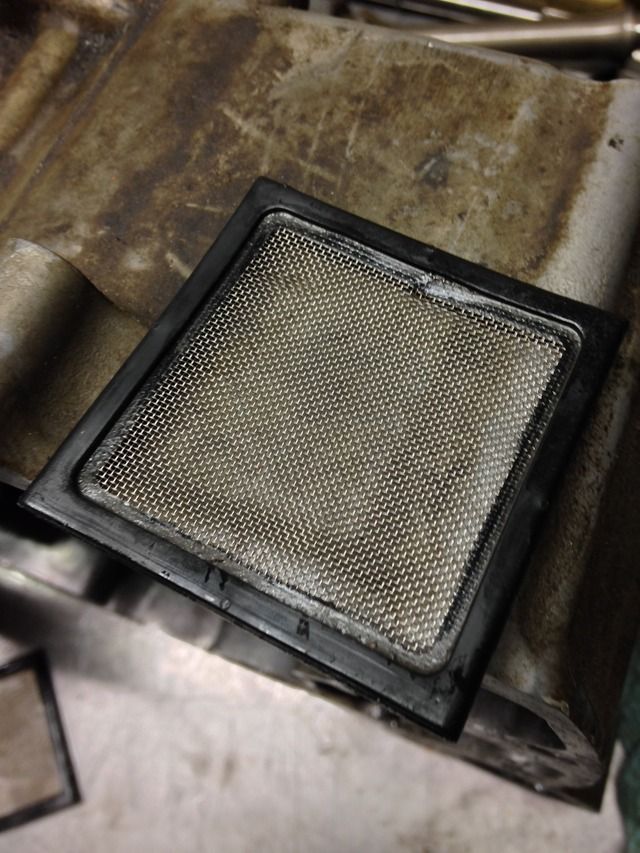

Luckily Honda has been using the same screen forever so I already had another one in nice shape so I’m not stalled out waiting for parts again.
Click the image to open in full size.

That is where I am at for now. I have to basically put everything back together and get the motor back in.

Stay tuned.

Rob
