Polaris Sportsman electric system.

Hello!

I am new boy in town. I am from Latvia, Europe. I own 2004 Polaris Sportsman 700.

Last month i worked in forest and an accident happened. I felled tree on my quad. It is damaged pretty badly. I have already bought new lamp, front plastics, full wiring harness and other parts.

I have managed to put it back together, but i have one problem.
So:

I have plugged all wires together, but i have one joint left out, and can’t find its place! and i can’t find that joint in wiring harness diagram. There is the picture.
Attachment 29562

Attachment 29570

Attachment 29578

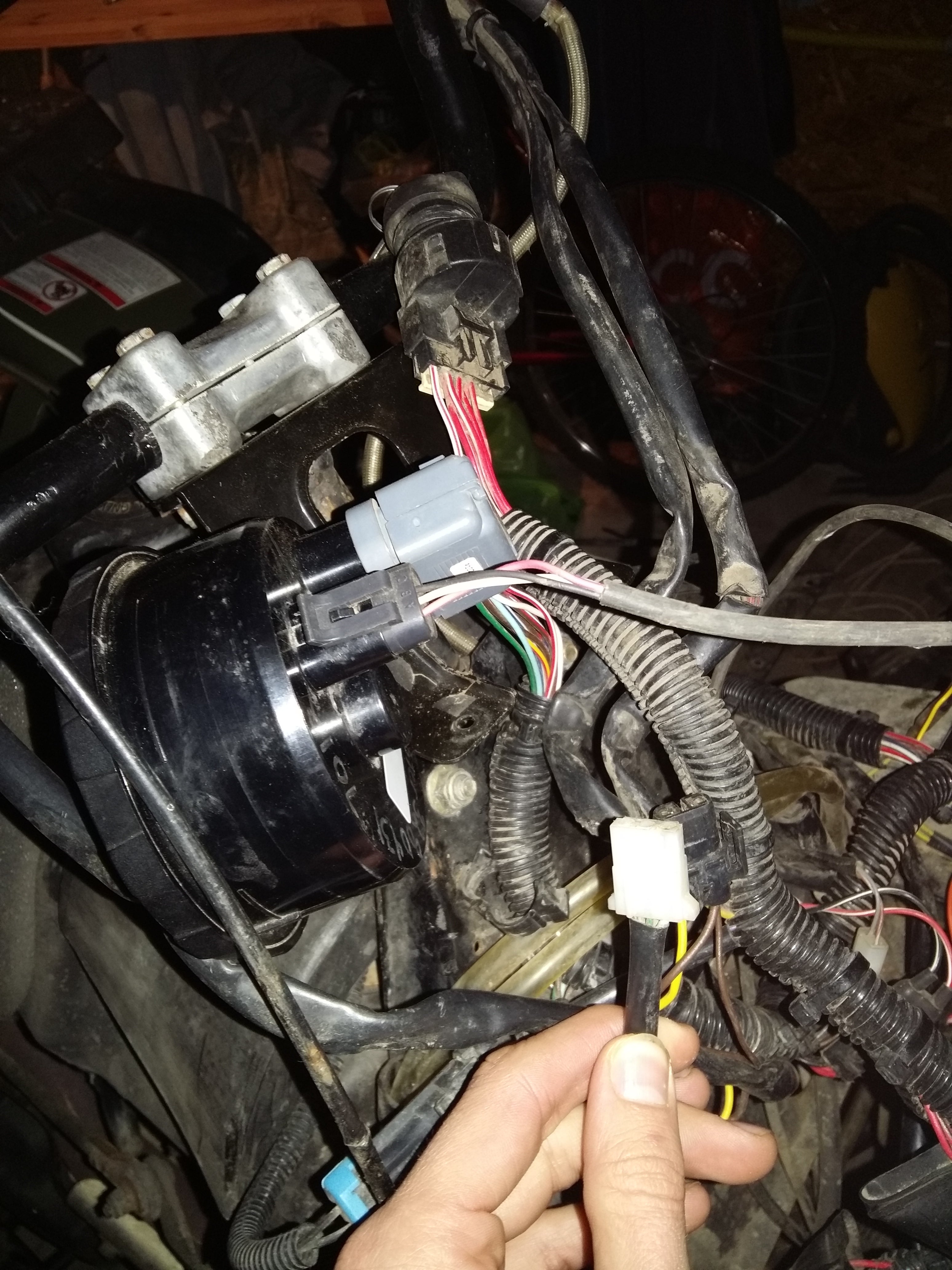

Tree cut off this one white joint. But now i can’t find its place with new wires.

Can you help me? 🙂

Other problem is that I cant start my quad. Fuel tank is full, spark is light and good, battery is fully charged, but quad wont start. any suggestions ?

Thank you already! Sorry for bad language…
